一、Pytorch基本操作考察

  1. 使用 𝐓𝐞𝐧𝐬𝐨𝐫 初始化一个 𝟏 × 𝟑 的矩阵 𝑴 和一个𝟐 × 𝟏 的矩阵 𝑵，对两矩阵进行减法操作（要求实现三种不同的形式），给出结果并分析三种方式的不同（如果出现报错，分析报错的因），同时需要指出在计算过程中发生了什么
import torch

m = torch.Tensor([[1,2,3]])
n = torch.Tensor([[5],[6]])

print(m - n)

tensor([[-4., -3., -2.],
        [-5., -4., -3.]])

Broadcasting能够实现Tensor自动维度增加（unsqueeze）与维度扩展（expand），以使两个Tensor的shape一致，如果 x 和 y 的维度不同，那么对于维度较小的 tensor 的维度补 1，使它们维度相同。 然后，对于每个维度，计算结果的维度值就是 x 和 y 中较大的那个值。 因此相减结果的维度应该是[2,3]，m被扩充成[[1,2,3],[1,2,3]]，n被扩充成[[5,5,5],[6,6,6]]

print(m.shape)
print(n.shape)
print((m-n).shape)


torch.Size([1, 3])
torch.Size([2, 1])
torch.Size([2, 3])

print(torch.sub(m, n))

tensor([[-4., -3., -2.],
        [-5., -4., -3.]])

print(m)

tensor([[1., 2., 3.]])

torch.sub()和减法的效果一致，且被减数不变

m.sub_(n)
print(m)

---------------------------------------------------------------------------

RuntimeError                              Traceback (most recent call last)

e:\deeplearning_wanhuaiyu_2022\homework\lab1\lab1.ipynb Cell 11' in <cell line: 1>()
----> <a href='vscode-notebook-cell:/e%3A/deeplearning_wanhuaiyu_2022/homework/lab1/lab1.ipynb#ch0000007?line=0'>1</a> m.sub_(n)
      <a href='vscode-notebook-cell:/e%3A/deeplearning_wanhuaiyu_2022/homework/lab1/lab1.ipynb#ch0000007?line=1'>2</a> print(m)


RuntimeError: output with shape [1, 3] doesn't match the broadcast shape [2, 3]

torch.sub_()功能与torch.sub()相同，区别在与torch.sub_()是torch.sub()的in-place操作版本。 in-place 操作是直接改变给定线性代数、向量、矩阵(张量)的内容而不需要复制的运算。 减法操作的结果的形状是[2,3]，而被减数m的形状是[1,3]，两个形状不一样所以报错了。无法赋值一个形状为[2,3]的数给m。

  1. ① 利用 𝐓𝐞𝐧𝐬𝐨𝐫 创建两个大小分别 𝟑 × 𝟐 和 𝟒 × 𝟐 的随机数矩阵 𝑷 和 𝑸 ，要求服从均值为0，标准差0.01为的正态分布；② 对第二步得到的矩阵 𝑸 进行形状变换得到 𝑸 的转置 𝑸𝑻 ；③ 对上述得到的矩阵 𝑷 和矩阵 𝑸𝑻 求矩阵相乘
p = torch.Tensor(3,2)
q = torch.Tensor(4,2)
torch.nn.init.normal_(p,mean=0, std=0.01)
torch.nn.init.normal_(q,mean=0, std=0.01)
print(p)
print(q)

tensor([[ 0.0066,  0.0102],
        [-0.0073, -0.0031],
        [-0.0065, -0.0011]])
tensor([[ 0.0084,  0.0104],
        [ 0.0025, -0.0048],
        [ 0.0063,  0.0234],
        [ 0.0151,  0.0079]])

torch.transpose(q,dim0=0,dim1=1)
torch.mm(p,q)

tensor([[ 1.6117e-04, -3.1666e-05,  2.7953e-04,  1.8049e-04],
        [-9.3779e-05, -3.9214e-06, -1.1848e-04, -1.3533e-04],
        [-6.5489e-05, -1.1341e-05, -6.5738e-05, -1.0617e-04]])
  1. 给定公式 $𝑦_3 = 𝑦_1 + 𝑦_2 = 𝑥^2 + 𝑥^3$，且 𝑥 = 1。利用学习所得到的Tensor的相关知识，求𝑦3对𝑥的梯度，即$\frac{d y_{3}}{d x}$。 要求在计算过程中，在计算 𝑥3 时中断梯度的追踪，观察结果并进行原因分析提示, 可使用 with torch.no_grad()， 举例: with torch.no_grad(): y = x * 5
x = torch.tensor([1.0],requires_grad=True)
y1 = x * x
y2 = x * x * x
print(y2.requires_grad)
y3 = y1 + y2
y3.backward()
print(x.grad)

True
tensor([5.])

不中断梯度跟踪，$\frac{d y_{3}}{d x}=2x+3x=5x$，当x=1时，计算结果为5

x = torch.tensor([1.0],requires_grad=True)
y1 = x * x
y2 = x * x * x
print(y2.requires_grad)
with torch.no_grad():
    y2 = x * x * x
    print(y2.requires_grad)
    print(y2.grad_fn)
y3 = y1 + y2
y3.backward()
print(x.grad)

True
False
None
tensor([2.])

x = torch.tensor([1.0],requires_grad=True)
y1 = x * x
y2 = x * x * x
print(y2.requires_grad)
with torch.no_grad():
    y2 = x * 5
    print(y2.requires_grad)
    print(y2.grad_fn)
y3 = y1 + y2
y3.backward()
print(x.grad)

True
False
None
tensor([2.])

因为y2中断了梯度的跟踪，所以无论y2值怎么算，梯度只返回$x^2$的梯度计算结果，即：2x，当x=1时结果为2

二、动手实现 logistic 回归

  1. 要求动手从0实现 logistic 回归（只借助Tensor和Numpy相关的库）在人工构造的数据集上进行训练和测试，并从loss以及训练集上的准确率等多个角度对结果进行分析 （可借助nn.BCELoss或nn.BCEWithLogitsLoss作为损失函数，从零实现二元交叉熵为选作）
import numpy as np
%matplotlib inline
from matplotlib.colors import ListedColormap
import torch
import matplotlib.pyplot as plt

n_data = torch.ones(100, 2) # 数据的基本形态
x1 = torch.normal(2 * n_data, 1) # shape=(100, 2)
y1 = torch.zeros(100) # 类型0 shape=(100, 1)
x2 = torch.normal(-2 * n_data, 1) # shape=(100, 2)
y2 = torch.ones(100) # 类型1 shape=(100, 1)
# 注意 x, y 数据的数据形式一定要像下面一样 (torch.cat 是合并数据)
x = torch.cat((x1, x2), 0).type(torch.FloatTensor)
y = torch.cat((y1, y2), 0).type(torch.FloatTensor)

index = 80
train_x = torch.cat((x1[:index], x2[:index]), 0).type(torch.FloatTensor)
train_y = torch.cat((y1[:index], y2[:index]), 0).type(torch.FloatTensor)
test_x = torch.cat((x1[index:], x2[index:]), 0).type(torch.FloatTensor)
test_y = torch.cat((y1[index:], y2[index:]), 0).type(torch.FloatTensor)
print(train_x.shape,train_y.shape,test_x.shape,test_y.shape)

torch.Size([160, 2]) torch.Size([160]) torch.Size([40, 2]) torch.Size([40])

def initialize(m):
    W=torch.tensor(np.random.normal(0,0.01,(m,1)),dtype=torch.float32)
    b=torch.zeros(1,dtype=torch.float32)
    W.requires_grad_(requires_grad=True)
    b.requires_grad_(requires_grad=True)

    return W, b

def data_iter(batch_size,features,labels):
    num_examples=len(features)
    indices=list(range(num_examples))
    np.random.shuffle(indices)
    for i in range(0,num_examples,batch_size):
        j=torch.LongTensor(indices[i:min(i+batch_size,num_examples)])
        yield features.index_select(0,j),labels.index_select(0,j)


def linear_combination(X, W, b):
    Z = torch.mm(X, W) + b
    return Z

def my_sigmoid(x):
    activations = 1/(1 + torch.pow(np.e,-x))
    return activations

def forward(X, W, b):
    Z = linear_combination(X, W, b)
    y_pred = my_sigmoid(Z)
    return y_pred

def logloss(y_true, y_pred):
    y_true = y_true.view(y_pred.size())
    loss = -y_true.mul(torch.log(y_pred))-(1-y_true).mul(torch.log(1-y_pred))
    return loss

def update(params, batch_size, learning_rate):
    for param in params:
        param.data -= learning_rate * param.grad / batch_size

def evaluate_accuracy(test_x, test_y, W, b, batch_size):
    acc_sum,n,test_l_sum = 0.0,0 ,0
    for testX,testY in data_iter(batch_size, test_x, test_y):
        test_y_pred = forward(testX, W, b)
        test_y_pred = torch.squeeze(torch.where(test_y_pred>0.5,torch.tensor(1.0),torch.tensor(0.0)))
        acc_sum += (test_y_pred==testY).float().sum().item()
        training_loss = logloss(testY, test_y_pred).sum()
        test_l_sum += training_loss.item()
        n += testY.shape[0]
    return acc_sum/n,test_l_sum/n


def train(test_acc, train_acc, train_loss, test_loss, W, b, epochs, batch_size, learning_rate, train_x,train_y,test_x, test_y):
    training_loss_list = []
    for i in range(epochs):
        train_l_sum, train_acc_sum, n = 0.0,0.0,0
        for trainX, trainY in data_iter(batch_size, train_x,train_y):
            train_y_pred = forward(trainX, W, b)
            training_loss = logloss(trainY, train_y_pred).sum()
            training_loss.backward()
            update([W,b],batch_size,learning_rate)
            W.grad.data.zero_()
            b.grad.data.zero_()
            train_l_sum += training_loss.item()
            train_y_pred = torch.squeeze(torch.where(train_y_pred>0.5,torch.tensor(1.0),torch.tensor(0.0)))
            train_acc_sum += (train_y_pred==trainY).sum().item()
            n += trainY.shape[0]
        test_a,test_l = evaluate_accuracy(test_x, test_y, W,b,batch_size)
        test_acc.append(test_a)
        test_loss.append(test_l)
        train_acc.append(train_acc_sum/n)
        train_loss.append(train_l_sum/n)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f'
            % (i + 1, train_loss[i], train_acc[i], test_acc[i]))


def plot_loss_curve(*args,xlabel = "epoch",ylabel = "loss"):
    for i in args:
        x = np.linspace(0,len(i[0]),len(i[0]))
        plt.plot(x,i[0],label=i[1],linewidth=1.5)
    plt.xlabel(xlabel)
    plt.ylabel(ylabel)
    plt.legend()
    plt.show()

lr = 0.0005
num_epochs = 300
batch_size = 50
test_acc,train_acc= [],[]
train_loss,test_loss =[],[]
W, b = initialize(2)

train(test_acc,train_acc,train_loss,test_loss,W, b,num_epochs,batch_size,lr,train_x,train_y,test_x, test_y)

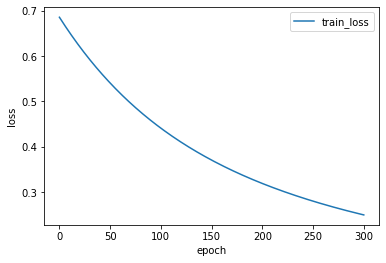

plot_loss_curve([train_loss,"train_loss"])

epoch 1, loss 0.6856, train acc 1.000, test acc 1.000
epoch 2, loss 0.6821, train acc 1.000, test acc 1.000
epoch 3, loss 0.6786, train acc 1.000, test acc 1.000
epoch 4, loss 0.6752, train acc 1.000, test acc 1.000
epoch 5, loss 0.6718, train acc 1.000, test acc 1.000
epoch 6, loss 0.6684, train acc 1.000, test acc 1.000
epoch 7, loss 0.6650, train acc 1.000, test acc 1.000
epoch 8, loss 0.6617, train acc 1.000, test acc 1.000
epoch 9, loss 0.6584, train acc 1.000, test acc 1.000
epoch 10, loss 0.6551, train acc 1.000, test acc 1.000
epoch 11, loss 0.6518, train acc 1.000, test acc 1.000
epoch 12, loss 0.6486, train acc 1.000, test acc 1.000
epoch 13, loss 0.6454, train acc 1.000, test acc 1.000
epoch 14, loss 0.6422, train acc 1.000, test acc 1.000
epoch 15, loss 0.6390, train acc 1.000, test acc 1.000
epoch 16, loss 0.6359, train acc 1.000, test acc 1.000
epoch 17, loss 0.6328, train acc 1.000, test acc 1.000
epoch 18, loss 0.6297, train acc 1.000, test acc 1.000
epoch 19, loss 0.6266, train acc 1.000, test acc 1.000
epoch 20, loss 0.6236, train acc 1.000, test acc 1.000
epoch 21, loss 0.6206, train acc 1.000, test acc 1.000
epoch 22, loss 0.6176, train acc 1.000, test acc 1.000
epoch 23, loss 0.6146, train acc 1.000, test acc 1.000
epoch 24, loss 0.6117, train acc 1.000, test acc 1.000
epoch 25, loss 0.6088, train acc 1.000, test acc 1.000
epoch 26, loss 0.6059, train acc 1.000, test acc 1.000
epoch 27, loss 0.6030, train acc 1.000, test acc 1.000
epoch 28, loss 0.6001, train acc 1.000, test acc 1.000
epoch 29, loss 0.5973, train acc 1.000, test acc 1.000
epoch 30, loss 0.5945, train acc 1.000, test acc 1.000
epoch 31, loss 0.5917, train acc 1.000, test acc 1.000
epoch 32, loss 0.5889, train acc 1.000, test acc 1.000
epoch 33, loss 0.5862, train acc 1.000, test acc 1.000
epoch 34, loss 0.5835, train acc 1.000, test acc 1.000
epoch 35, loss 0.5807, train acc 1.000, test acc 1.000
epoch 36, loss 0.5781, train acc 1.000, test acc 1.000
epoch 37, loss 0.5754, train acc 1.000, test acc 1.000
epoch 38, loss 0.5728, train acc 1.000, test acc 1.000
epoch 39, loss 0.5701, train acc 1.000, test acc 1.000
epoch 40, loss 0.5675, train acc 1.000, test acc 1.000
epoch 41, loss 0.5650, train acc 1.000, test acc 1.000
epoch 42, loss 0.5624, train acc 1.000, test acc 1.000
epoch 43, loss 0.5598, train acc 1.000, test acc 1.000
epoch 44, loss 0.5573, train acc 1.000, test acc 1.000
epoch 45, loss 0.5548, train acc 1.000, test acc 1.000
epoch 46, loss 0.5523, train acc 1.000, test acc 1.000
epoch 47, loss 0.5499, train acc 1.000, test acc 1.000
epoch 48, loss 0.5474, train acc 1.000, test acc 1.000
epoch 49, loss 0.5450, train acc 1.000, test acc 1.000
epoch 50, loss 0.5426, train acc 1.000, test acc 1.000
epoch 51, loss 0.5402, train acc 1.000, test acc 1.000
epoch 52, loss 0.5378, train acc 1.000, test acc 1.000
epoch 53, loss 0.5355, train acc 1.000, test acc 1.000
epoch 54, loss 0.5331, train acc 1.000, test acc 1.000
epoch 55, loss 0.5308, train acc 1.000, test acc 1.000
epoch 56, loss 0.5285, train acc 1.000, test acc 1.000
epoch 57, loss 0.5262, train acc 1.000, test acc 1.000
epoch 58, loss 0.5239, train acc 1.000, test acc 1.000
epoch 59, loss 0.5217, train acc 1.000, test acc 1.000
epoch 60, loss 0.5195, train acc 1.000, test acc 1.000
epoch 61, loss 0.5172, train acc 1.000, test acc 1.000
epoch 62, loss 0.5150, train acc 1.000, test acc 1.000
epoch 63, loss 0.5128, train acc 1.000, test acc 1.000
epoch 64, loss 0.5107, train acc 1.000, test acc 1.000
epoch 65, loss 0.5085, train acc 1.000, test acc 1.000
epoch 66, loss 0.5064, train acc 1.000, test acc 1.000
epoch 67, loss 0.5043, train acc 1.000, test acc 1.000
epoch 68, loss 0.5021, train acc 1.000, test acc 1.000
epoch 69, loss 0.5001, train acc 1.000, test acc 1.000
epoch 70, loss 0.4980, train acc 1.000, test acc 1.000
epoch 71, loss 0.4959, train acc 1.000, test acc 1.000
epoch 72, loss 0.4939, train acc 1.000, test acc 1.000
epoch 73, loss 0.4918, train acc 1.000, test acc 1.000
epoch 74, loss 0.4898, train acc 1.000, test acc 1.000
epoch 75, loss 0.4878, train acc 1.000, test acc 1.000
epoch 76, loss 0.4858, train acc 1.000, test acc 1.000
epoch 77, loss 0.4839, train acc 1.000, test acc 1.000
epoch 78, loss 0.4819, train acc 1.000, test acc 1.000
epoch 79, loss 0.4800, train acc 1.000, test acc 1.000
epoch 80, loss 0.4780, train acc 1.000, test acc 1.000
epoch 81, loss 0.4761, train acc 1.000, test acc 1.000
epoch 82, loss 0.4742, train acc 1.000, test acc 1.000
epoch 83, loss 0.4723, train acc 1.000, test acc 1.000
epoch 84, loss 0.4705, train acc 1.000, test acc 1.000
epoch 85, loss 0.4686, train acc 1.000, test acc 1.000
epoch 86, loss 0.4667, train acc 1.000, test acc 1.000
epoch 87, loss 0.4649, train acc 1.000, test acc 1.000
epoch 88, loss 0.4631, train acc 1.000, test acc 1.000
epoch 89, loss 0.4613, train acc 1.000, test acc 1.000
epoch 90, loss 0.4595, train acc 1.000, test acc 1.000
epoch 91, loss 0.4577, train acc 1.000, test acc 1.000
epoch 92, loss 0.4559, train acc 1.000, test acc 1.000
epoch 93, loss 0.4542, train acc 1.000, test acc 1.000
epoch 94, loss 0.4524, train acc 1.000, test acc 1.000
epoch 95, loss 0.4507, train acc 1.000, test acc 1.000
epoch 96, loss 0.4490, train acc 1.000, test acc 1.000
epoch 97, loss 0.4472, train acc 1.000, test acc 1.000
epoch 98, loss 0.4455, train acc 1.000, test acc 1.000
epoch 99, loss 0.4439, train acc 1.000, test acc 1.000
epoch 100, loss 0.4422, train acc 1.000, test acc 1.000
epoch 101, loss 0.4405, train acc 1.000, test acc 1.000
epoch 102, loss 0.4389, train acc 1.000, test acc 1.000
epoch 103, loss 0.4372, train acc 1.000, test acc 1.000
epoch 104, loss 0.4356, train acc 1.000, test acc 1.000
epoch 105, loss 0.4340, train acc 1.000, test acc 1.000
epoch 106, loss 0.4324, train acc 1.000, test acc 1.000
epoch 107, loss 0.4308, train acc 1.000, test acc 1.000
epoch 108, loss 0.4292, train acc 1.000, test acc 1.000
epoch 109, loss 0.4276, train acc 1.000, test acc 1.000
epoch 110, loss 0.4260, train acc 1.000, test acc 1.000
epoch 111, loss 0.4245, train acc 1.000, test acc 1.000
epoch 112, loss 0.4230, train acc 1.000, test acc 1.000
epoch 113, loss 0.4214, train acc 1.000, test acc 1.000
epoch 114, loss 0.4199, train acc 1.000, test acc 1.000
epoch 115, loss 0.4184, train acc 1.000, test acc 1.000
epoch 116, loss 0.4169, train acc 1.000, test acc 1.000
epoch 117, loss 0.4154, train acc 1.000, test acc 1.000
epoch 118, loss 0.4139, train acc 1.000, test acc 1.000
epoch 119, loss 0.4124, train acc 1.000, test acc 1.000
epoch 120, loss 0.4110, train acc 1.000, test acc 1.000
epoch 121, loss 0.4095, train acc 1.000, test acc 1.000
epoch 122, loss 0.4081, train acc 1.000, test acc 1.000
epoch 123, loss 0.4067, train acc 1.000, test acc 1.000
epoch 124, loss 0.4052, train acc 1.000, test acc 1.000
epoch 125, loss 0.4038, train acc 1.000, test acc 1.000
epoch 126, loss 0.4024, train acc 1.000, test acc 1.000
epoch 127, loss 0.4010, train acc 1.000, test acc 1.000
epoch 128, loss 0.3996, train acc 1.000, test acc 1.000
epoch 129, loss 0.3983, train acc 1.000, test acc 1.000
epoch 130, loss 0.3969, train acc 1.000, test acc 1.000
epoch 131, loss 0.3955, train acc 1.000, test acc 1.000
epoch 132, loss 0.3942, train acc 1.000, test acc 1.000
epoch 133, loss 0.3928, train acc 1.000, test acc 1.000
epoch 134, loss 0.3915, train acc 1.000, test acc 1.000
epoch 135, loss 0.3902, train acc 1.000, test acc 1.000
epoch 136, loss 0.3889, train acc 1.000, test acc 1.000
epoch 137, loss 0.3875, train acc 1.000, test acc 1.000
epoch 138, loss 0.3862, train acc 1.000, test acc 1.000
epoch 139, loss 0.3850, train acc 1.000, test acc 1.000
epoch 140, loss 0.3837, train acc 1.000, test acc 1.000
epoch 141, loss 0.3824, train acc 1.000, test acc 1.000
epoch 142, loss 0.3811, train acc 1.000, test acc 1.000
epoch 143, loss 0.3799, train acc 1.000, test acc 1.000
epoch 144, loss 0.3786, train acc 1.000, test acc 1.000
epoch 145, loss 0.3774, train acc 1.000, test acc 1.000
epoch 146, loss 0.3761, train acc 1.000, test acc 1.000
epoch 147, loss 0.3749, train acc 1.000, test acc 1.000
epoch 148, loss 0.3737, train acc 1.000, test acc 1.000
epoch 149, loss 0.3725, train acc 1.000, test acc 1.000
epoch 150, loss 0.3713, train acc 1.000, test acc 1.000
epoch 151, loss 0.3701, train acc 1.000, test acc 1.000
epoch 152, loss 0.3689, train acc 1.000, test acc 1.000
epoch 153, loss 0.3677, train acc 1.000, test acc 1.000
epoch 154, loss 0.3665, train acc 1.000, test acc 1.000
epoch 155, loss 0.3654, train acc 1.000, test acc 1.000
epoch 156, loss 0.3642, train acc 1.000, test acc 1.000
epoch 157, loss 0.3631, train acc 1.000, test acc 1.000
epoch 158, loss 0.3619, train acc 1.000, test acc 1.000
epoch 159, loss 0.3608, train acc 1.000, test acc 1.000
epoch 160, loss 0.3596, train acc 1.000, test acc 1.000
epoch 161, loss 0.3585, train acc 1.000, test acc 1.000
epoch 162, loss 0.3574, train acc 1.000, test acc 1.000
epoch 163, loss 0.3563, train acc 1.000, test acc 1.000
epoch 164, loss 0.3552, train acc 1.000, test acc 1.000
epoch 165, loss 0.3541, train acc 1.000, test acc 1.000
epoch 166, loss 0.3530, train acc 1.000, test acc 1.000
epoch 167, loss 0.3519, train acc 1.000, test acc 1.000
epoch 168, loss 0.3508, train acc 1.000, test acc 1.000
epoch 169, loss 0.3497, train acc 1.000, test acc 1.000
epoch 170, loss 0.3487, train acc 1.000, test acc 1.000
epoch 171, loss 0.3476, train acc 1.000, test acc 1.000
epoch 172, loss 0.3466, train acc 1.000, test acc 1.000
epoch 173, loss 0.3455, train acc 1.000, test acc 1.000
epoch 174, loss 0.3445, train acc 1.000, test acc 1.000
epoch 175, loss 0.3434, train acc 1.000, test acc 1.000
epoch 176, loss 0.3424, train acc 1.000, test acc 1.000
epoch 177, loss 0.3414, train acc 1.000, test acc 1.000
epoch 178, loss 0.3404, train acc 1.000, test acc 1.000
epoch 179, loss 0.3394, train acc 1.000, test acc 1.000
epoch 180, loss 0.3384, train acc 1.000, test acc 1.000
epoch 181, loss 0.3374, train acc 1.000, test acc 1.000
epoch 182, loss 0.3364, train acc 1.000, test acc 1.000
epoch 183, loss 0.3354, train acc 1.000, test acc 1.000
epoch 184, loss 0.3344, train acc 1.000, test acc 1.000
epoch 185, loss 0.3334, train acc 1.000, test acc 1.000
epoch 186, loss 0.3325, train acc 1.000, test acc 1.000
epoch 187, loss 0.3315, train acc 1.000, test acc 1.000
epoch 188, loss 0.3305, train acc 1.000, test acc 1.000
epoch 189, loss 0.3296, train acc 1.000, test acc 1.000
epoch 190, loss 0.3286, train acc 1.000, test acc 1.000
epoch 191, loss 0.3277, train acc 1.000, test acc 1.000
epoch 192, loss 0.3267, train acc 1.000, test acc 1.000
epoch 193, loss 0.3258, train acc 1.000, test acc 1.000
epoch 194, loss 0.3249, train acc 1.000, test acc 1.000
epoch 195, loss 0.3240, train acc 1.000, test acc 1.000
epoch 196, loss 0.3231, train acc 1.000, test acc 1.000
epoch 197, loss 0.3221, train acc 1.000, test acc 1.000
epoch 198, loss 0.3212, train acc 1.000, test acc 1.000
epoch 199, loss 0.3203, train acc 1.000, test acc 1.000
epoch 200, loss 0.3194, train acc 1.000, test acc 1.000
epoch 201, loss 0.3185, train acc 1.000, test acc 1.000
epoch 202, loss 0.3177, train acc 1.000, test acc 1.000
epoch 203, loss 0.3168, train acc 1.000, test acc 1.000
epoch 204, loss 0.3159, train acc 1.000, test acc 1.000
epoch 205, loss 0.3150, train acc 1.000, test acc 1.000
epoch 206, loss 0.3142, train acc 1.000, test acc 1.000
epoch 207, loss 0.3133, train acc 1.000, test acc 1.000
epoch 208, loss 0.3124, train acc 1.000, test acc 1.000
epoch 209, loss 0.3116, train acc 1.000, test acc 1.000
epoch 210, loss 0.3107, train acc 1.000, test acc 1.000
epoch 211, loss 0.3099, train acc 1.000, test acc 1.000
epoch 212, loss 0.3091, train acc 1.000, test acc 1.000
epoch 213, loss 0.3082, train acc 1.000, test acc 1.000
epoch 214, loss 0.3074, train acc 1.000, test acc 1.000
epoch 215, loss 0.3066, train acc 1.000, test acc 1.000
epoch 216, loss 0.3058, train acc 1.000, test acc 1.000
epoch 217, loss 0.3049, train acc 1.000, test acc 1.000
epoch 218, loss 0.3041, train acc 1.000, test acc 1.000
epoch 219, loss 0.3033, train acc 1.000, test acc 1.000
epoch 220, loss 0.3025, train acc 1.000, test acc 1.000
epoch 221, loss 0.3017, train acc 1.000, test acc 1.000
epoch 222, loss 0.3009, train acc 1.000, test acc 1.000
epoch 223, loss 0.3001, train acc 1.000, test acc 1.000
epoch 224, loss 0.2993, train acc 1.000, test acc 1.000
epoch 225, loss 0.2986, train acc 1.000, test acc 1.000
epoch 226, loss 0.2978, train acc 1.000, test acc 1.000
epoch 227, loss 0.2970, train acc 1.000, test acc 1.000
epoch 228, loss 0.2962, train acc 1.000, test acc 1.000
epoch 229, loss 0.2955, train acc 1.000, test acc 1.000
epoch 230, loss 0.2947, train acc 1.000, test acc 1.000
epoch 231, loss 0.2940, train acc 1.000, test acc 1.000
epoch 232, loss 0.2932, train acc 1.000, test acc 1.000
epoch 233, loss 0.2924, train acc 1.000, test acc 1.000
epoch 234, loss 0.2917, train acc 1.000, test acc 1.000
epoch 235, loss 0.2910, train acc 1.000, test acc 1.000
epoch 236, loss 0.2902, train acc 1.000, test acc 1.000
epoch 237, loss 0.2895, train acc 1.000, test acc 1.000
epoch 238, loss 0.2888, train acc 1.000, test acc 1.000
epoch 239, loss 0.2880, train acc 1.000, test acc 1.000
epoch 240, loss 0.2873, train acc 1.000, test acc 1.000
epoch 241, loss 0.2866, train acc 1.000, test acc 1.000
epoch 242, loss 0.2859, train acc 1.000, test acc 1.000
epoch 243, loss 0.2852, train acc 1.000, test acc 1.000
epoch 244, loss 0.2844, train acc 1.000, test acc 1.000
epoch 245, loss 0.2837, train acc 1.000, test acc 1.000
epoch 246, loss 0.2830, train acc 1.000, test acc 1.000
epoch 247, loss 0.2823, train acc 1.000, test acc 1.000
epoch 248, loss 0.2817, train acc 1.000, test acc 1.000
epoch 249, loss 0.2810, train acc 1.000, test acc 1.000
epoch 250, loss 0.2803, train acc 1.000, test acc 1.000
epoch 251, loss 0.2796, train acc 1.000, test acc 1.000
epoch 252, loss 0.2789, train acc 1.000, test acc 1.000
epoch 253, loss 0.2782, train acc 1.000, test acc 1.000
epoch 254, loss 0.2776, train acc 1.000, test acc 1.000
epoch 255, loss 0.2769, train acc 1.000, test acc 1.000
epoch 256, loss 0.2762, train acc 1.000, test acc 1.000
epoch 257, loss 0.2756, train acc 1.000, test acc 1.000
epoch 258, loss 0.2749, train acc 1.000, test acc 1.000
epoch 259, loss 0.2742, train acc 1.000, test acc 1.000
epoch 260, loss 0.2736, train acc 1.000, test acc 1.000
epoch 261, loss 0.2729, train acc 1.000, test acc 1.000
epoch 262, loss 0.2723, train acc 1.000, test acc 1.000
epoch 263, loss 0.2716, train acc 1.000, test acc 1.000
epoch 264, loss 0.2710, train acc 1.000, test acc 1.000
epoch 265, loss 0.2704, train acc 1.000, test acc 1.000
epoch 266, loss 0.2697, train acc 1.000, test acc 1.000
epoch 267, loss 0.2691, train acc 1.000, test acc 1.000
epoch 268, loss 0.2685, train acc 1.000, test acc 1.000
epoch 269, loss 0.2678, train acc 1.000, test acc 1.000
epoch 270, loss 0.2672, train acc 1.000, test acc 1.000
epoch 271, loss 0.2666, train acc 1.000, test acc 1.000
epoch 272, loss 0.2660, train acc 1.000, test acc 1.000
epoch 273, loss 0.2654, train acc 1.000, test acc 1.000
epoch 274, loss 0.2647, train acc 1.000, test acc 1.000
epoch 275, loss 0.2641, train acc 1.000, test acc 1.000
epoch 276, loss 0.2635, train acc 1.000, test acc 1.000
epoch 277, loss 0.2629, train acc 1.000, test acc 1.000
epoch 278, loss 0.2623, train acc 1.000, test acc 1.000
epoch 279, loss 0.2617, train acc 1.000, test acc 1.000
epoch 280, loss 0.2611, train acc 1.000, test acc 1.000
epoch 281, loss 0.2605, train acc 1.000, test acc 1.000
epoch 282, loss 0.2600, train acc 1.000, test acc 1.000
epoch 283, loss 0.2594, train acc 1.000, test acc 1.000
epoch 284, loss 0.2588, train acc 1.000, test acc 1.000
epoch 285, loss 0.2582, train acc 1.000, test acc 1.000
epoch 286, loss 0.2576, train acc 1.000, test acc 1.000
epoch 287, loss 0.2571, train acc 1.000, test acc 1.000
epoch 288, loss 0.2565, train acc 1.000, test acc 1.000
epoch 289, loss 0.2559, train acc 1.000, test acc 1.000
epoch 290, loss 0.2553, train acc 1.000, test acc 1.000
epoch 291, loss 0.2548, train acc 1.000, test acc 1.000
epoch 292, loss 0.2542, train acc 1.000, test acc 1.000
epoch 293, loss 0.2537, train acc 1.000, test acc 1.000
epoch 294, loss 0.2531, train acc 1.000, test acc 1.000
epoch 295, loss 0.2525, train acc 1.000, test acc 1.000
epoch 296, loss 0.2520, train acc 1.000, test acc 1.000
epoch 297, loss 0.2514, train acc 1.000, test acc 1.000
epoch 298, loss 0.2509, train acc 1.000, test acc 1.000
epoch 299, loss 0.2504, train acc 1.000, test acc 1.000
epoch 300, loss 0.2498, train acc 1.000, test acc 1.000

png

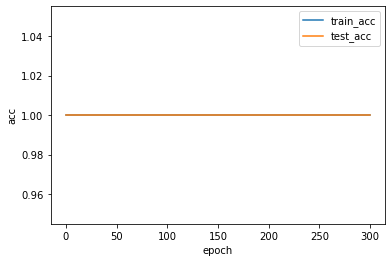

plot_loss_curve([train_acc,"train_acc"],[test_acc,"test_acc"],ylabel = "acc")

png

  1. 利用 torch.nn 实现 logistic 回归在人工构造的数据集上进行训练和测试，并对结果进行分析，并从loss以及训练集上的准确率等多个角度对结果进行分析
import torch
import numpy as np
import matplotlib.pyplot as plt
import torch.utils.data as Data
from torch.nn import init
from torch import nn
batch_size = 50
dataset = Data.TensorDataset(train_x, train_y)
train_data_iter = Data.DataLoader(dataset=dataset, batch_size=batch_size, shuffle=True, num_workers=0)
dataset = Data.TensorDataset(test_x, test_y)
test_data_iter = Data.DataLoader(dataset=dataset, batch_size=batch_size, shuffle=True, num_workers=0)


class Logistic(nn.Module):
    def __init__(self,n_features):
        super(Logistic, self).__init__()
        self.learning_rate = nn.Linear(n_features, 1)
        self.activation_function = nn.Sigmoid()

    def forward(self, x):
        x = self.learning_rate(x)
        x = self.activation_function(x)
        return x


logistic_model = Logistic(2)
loss = nn.BCELoss()
optimizer = torch.optim.SGD(logistic_model.parameters(), lr=1e-3)
init.normal_(logistic_model.learning_rate.weight, mean=0, std=0.01)
init.constant_(logistic_model.learning_rate.bias, val=0)
print(logistic_model.learning_rate.weight)
print(logistic_model.learning_rate.bias)

Parameter containing:
tensor([[-0.0079, -0.0092]], requires_grad=True)
Parameter containing:
tensor([0.], requires_grad=True)

def evaluate_accuracy():
    acc_sum,n,test_l_sum = 0.0,0 ,0
    for testX,testY in train_data_iter:
        test_y_pred = logistic_model(testX)
        training_loss = loss(test_y_pred, testY.view(-1, 1))
        test_y_pred = torch.squeeze(torch.where(test_y_pred>0.5,torch.tensor(1.0),torch.tensor(0.0)))
        acc_sum += (test_y_pred==testY).float().sum().item()
        test_l_sum += training_loss.item()
        n += testY.shape[0]
    return acc_sum/n,test_l_sum/n


def train(test_acc, train_acc, train_loss, test_loss,epochs):
    for i in range(epochs):
        train_l_sum, train_acc_sum, n = 0.0,0.0,0
        for trainX, trainY in train_data_iter:
            train_y_pred = logistic_model(trainX)
            l = loss(train_y_pred, trainY.view(-1, 1))
            optimizer.zero_grad()
            l.backward()
            # update model parameters
            optimizer.step()
            #计算每个epoch的loss
            train_l_sum += l.item()
            #计算训练样本的准确率
            train_y_pred = torch.squeeze(torch.where(train_y_pred>0.5,torch.tensor(1.0),torch.tensor(0.0)))
            train_acc_sum += (train_y_pred==trainY).sum().item()
            n += trainY.shape[0]
        test_a,test_l = evaluate_accuracy()
        test_acc.append(test_a)
        test_loss.append(test_l)
        train_acc.append(train_acc_sum/n)
        train_loss.append(train_l_sum/n)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f'
            % (i + 1, train_loss[i], train_acc[i], test_acc[i]))


lr = 0.0005
num_epochs = 300
batch_size = 50
test_acc,train_acc= [],[]
train_loss,test_loss =[],[]
W, b = initialize(2)

train(test_acc,train_acc,train_loss,test_loss,num_epochs)

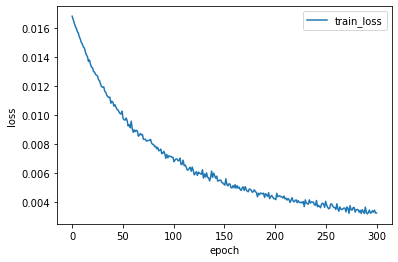

plot_loss_curve([train_loss,"train_loss"])

epoch 1, loss 0.0168, train acc 1.000, test acc 1.000
epoch 2, loss 0.0166, train acc 1.000, test acc 1.000
epoch 3, loss 0.0164, train acc 1.000, test acc 1.000
epoch 4, loss 0.0161, train acc 1.000, test acc 1.000
epoch 5, loss 0.0160, train acc 1.000, test acc 1.000
epoch 6, loss 0.0158, train acc 1.000, test acc 1.000
epoch 7, loss 0.0157, train acc 1.000, test acc 1.000
epoch 8, loss 0.0154, train acc 1.000, test acc 1.000
epoch 9, loss 0.0152, train acc 1.000, test acc 1.000
epoch 10, loss 0.0150, train acc 1.000, test acc 1.000
epoch 11, loss 0.0149, train acc 1.000, test acc 1.000
epoch 12, loss 0.0147, train acc 1.000, test acc 1.000
epoch 13, loss 0.0146, train acc 1.000, test acc 1.000
epoch 14, loss 0.0144, train acc 1.000, test acc 1.000
epoch 15, loss 0.0141, train acc 1.000, test acc 1.000
epoch 16, loss 0.0140, train acc 1.000, test acc 1.000
epoch 17, loss 0.0137, train acc 1.000, test acc 1.000
epoch 18, loss 0.0138, train acc 1.000, test acc 1.000
epoch 19, loss 0.0135, train acc 1.000, test acc 1.000
epoch 20, loss 0.0133, train acc 1.000, test acc 1.000
epoch 21, loss 0.0133, train acc 1.000, test acc 1.000
epoch 22, loss 0.0130, train acc 1.000, test acc 1.000
epoch 23, loss 0.0130, train acc 1.000, test acc 1.000
epoch 24, loss 0.0128, train acc 1.000, test acc 1.000
epoch 25, loss 0.0128, train acc 1.000, test acc 1.000
epoch 26, loss 0.0127, train acc 1.000, test acc 1.000
epoch 27, loss 0.0124, train acc 1.000, test acc 1.000
epoch 28, loss 0.0124, train acc 1.000, test acc 1.000
epoch 29, loss 0.0121, train acc 1.000, test acc 1.000
epoch 30, loss 0.0120, train acc 1.000, test acc 1.000
epoch 31, loss 0.0119, train acc 1.000, test acc 1.000
epoch 32, loss 0.0119, train acc 1.000, test acc 1.000
epoch 33, loss 0.0116, train acc 1.000, test acc 1.000
epoch 34, loss 0.0116, train acc 1.000, test acc 1.000
epoch 35, loss 0.0114, train acc 1.000, test acc 1.000
epoch 36, loss 0.0113, train acc 1.000, test acc 1.000
epoch 37, loss 0.0112, train acc 1.000, test acc 1.000
epoch 38, loss 0.0112, train acc 1.000, test acc 1.000
epoch 39, loss 0.0108, train acc 1.000, test acc 1.000
epoch 40, loss 0.0110, train acc 1.000, test acc 1.000
epoch 41, loss 0.0109, train acc 1.000, test acc 1.000
epoch 42, loss 0.0106, train acc 1.000, test acc 1.000
epoch 43, loss 0.0107, train acc 1.000, test acc 1.000
epoch 44, loss 0.0106, train acc 1.000, test acc 1.000
epoch 45, loss 0.0104, train acc 1.000, test acc 1.000
epoch 46, loss 0.0104, train acc 1.000, test acc 1.000
epoch 47, loss 0.0102, train acc 1.000, test acc 1.000
epoch 48, loss 0.0101, train acc 1.000, test acc 1.000
epoch 49, loss 0.0101, train acc 1.000, test acc 1.000
epoch 50, loss 0.0103, train acc 1.000, test acc 1.000
epoch 51, loss 0.0098, train acc 1.000, test acc 1.000
epoch 52, loss 0.0097, train acc 1.000, test acc 1.000
epoch 53, loss 0.0096, train acc 1.000, test acc 1.000
epoch 54, loss 0.0098, train acc 1.000, test acc 1.000
epoch 55, loss 0.0096, train acc 1.000, test acc 1.000
epoch 56, loss 0.0092, train acc 1.000, test acc 1.000
epoch 57, loss 0.0093, train acc 1.000, test acc 1.000
epoch 58, loss 0.0091, train acc 1.000, test acc 1.000
epoch 59, loss 0.0096, train acc 1.000, test acc 1.000
epoch 60, loss 0.0091, train acc 1.000, test acc 1.000
epoch 61, loss 0.0088, train acc 1.000, test acc 1.000
epoch 62, loss 0.0090, train acc 1.000, test acc 1.000
epoch 63, loss 0.0089, train acc 1.000, test acc 1.000
epoch 64, loss 0.0089, train acc 1.000, test acc 1.000
epoch 65, loss 0.0089, train acc 1.000, test acc 1.000
epoch 66, loss 0.0085, train acc 1.000, test acc 1.000
epoch 67, loss 0.0086, train acc 1.000, test acc 1.000
epoch 68, loss 0.0087, train acc 1.000, test acc 1.000
epoch 69, loss 0.0086, train acc 1.000, test acc 1.000
epoch 70, loss 0.0087, train acc 1.000, test acc 1.000
epoch 71, loss 0.0083, train acc 1.000, test acc 1.000
epoch 72, loss 0.0083, train acc 1.000, test acc 1.000
epoch 73, loss 0.0083, train acc 1.000, test acc 1.000
epoch 74, loss 0.0082, train acc 1.000, test acc 1.000
epoch 75, loss 0.0082, train acc 1.000, test acc 1.000
epoch 76, loss 0.0082, train acc 1.000, test acc 1.000
epoch 77, loss 0.0083, train acc 1.000, test acc 1.000
epoch 78, loss 0.0083, train acc 1.000, test acc 1.000
epoch 79, loss 0.0081, train acc 1.000, test acc 1.000
epoch 80, loss 0.0080, train acc 1.000, test acc 1.000
epoch 81, loss 0.0080, train acc 1.000, test acc 1.000
epoch 82, loss 0.0078, train acc 1.000, test acc 1.000
epoch 83, loss 0.0078, train acc 1.000, test acc 1.000
epoch 84, loss 0.0077, train acc 1.000, test acc 1.000
epoch 85, loss 0.0078, train acc 1.000, test acc 1.000
epoch 86, loss 0.0075, train acc 1.000, test acc 1.000
epoch 87, loss 0.0076, train acc 1.000, test acc 1.000
epoch 88, loss 0.0076, train acc 1.000, test acc 1.000
epoch 89, loss 0.0073, train acc 1.000, test acc 1.000
epoch 90, loss 0.0074, train acc 1.000, test acc 1.000
epoch 91, loss 0.0075, train acc 1.000, test acc 1.000
epoch 92, loss 0.0073, train acc 1.000, test acc 1.000
epoch 93, loss 0.0070, train acc 1.000, test acc 1.000
epoch 94, loss 0.0073, train acc 1.000, test acc 1.000
epoch 95, loss 0.0070, train acc 1.000, test acc 1.000
epoch 96, loss 0.0072, train acc 1.000, test acc 1.000
epoch 97, loss 0.0071, train acc 1.000, test acc 1.000
epoch 98, loss 0.0071, train acc 1.000, test acc 1.000
epoch 99, loss 0.0071, train acc 1.000, test acc 1.000
epoch 100, loss 0.0071, train acc 1.000, test acc 1.000
epoch 101, loss 0.0068, train acc 1.000, test acc 1.000
epoch 102, loss 0.0069, train acc 1.000, test acc 1.000
epoch 103, loss 0.0070, train acc 1.000, test acc 1.000
epoch 104, loss 0.0070, train acc 1.000, test acc 1.000
epoch 105, loss 0.0068, train acc 1.000, test acc 1.000
epoch 106, loss 0.0068, train acc 1.000, test acc 1.000
epoch 107, loss 0.0070, train acc 1.000, test acc 1.000
epoch 108, loss 0.0066, train acc 1.000, test acc 1.000
epoch 109, loss 0.0066, train acc 1.000, test acc 1.000
epoch 110, loss 0.0069, train acc 1.000, test acc 1.000
epoch 111, loss 0.0065, train acc 1.000, test acc 1.000
epoch 112, loss 0.0065, train acc 1.000, test acc 1.000
epoch 113, loss 0.0064, train acc 1.000, test acc 1.000
epoch 114, loss 0.0062, train acc 1.000, test acc 1.000
epoch 115, loss 0.0062, train acc 1.000, test acc 1.000
epoch 116, loss 0.0063, train acc 1.000, test acc 1.000
epoch 117, loss 0.0064, train acc 1.000, test acc 1.000
epoch 118, loss 0.0061, train acc 1.000, test acc 1.000
epoch 119, loss 0.0064, train acc 1.000, test acc 1.000
epoch 120, loss 0.0062, train acc 1.000, test acc 1.000
epoch 121, loss 0.0059, train acc 1.000, test acc 1.000
epoch 122, loss 0.0060, train acc 1.000, test acc 1.000
epoch 123, loss 0.0061, train acc 1.000, test acc 1.000
epoch 124, loss 0.0058, train acc 1.000, test acc 1.000
epoch 125, loss 0.0061, train acc 1.000, test acc 1.000
epoch 126, loss 0.0060, train acc 1.000, test acc 1.000
epoch 127, loss 0.0059, train acc 1.000, test acc 1.000
epoch 128, loss 0.0059, train acc 1.000, test acc 1.000
epoch 129, loss 0.0062, train acc 1.000, test acc 1.000
epoch 130, loss 0.0056, train acc 1.000, test acc 1.000
epoch 131, loss 0.0059, train acc 1.000, test acc 1.000
epoch 132, loss 0.0057, train acc 1.000, test acc 1.000
epoch 133, loss 0.0060, train acc 1.000, test acc 1.000
epoch 134, loss 0.0057, train acc 1.000, test acc 1.000
epoch 135, loss 0.0057, train acc 1.000, test acc 1.000
epoch 136, loss 0.0054, train acc 1.000, test acc 1.000
epoch 137, loss 0.0057, train acc 1.000, test acc 1.000
epoch 138, loss 0.0061, train acc 1.000, test acc 1.000
epoch 139, loss 0.0057, train acc 1.000, test acc 1.000
epoch 140, loss 0.0060, train acc 1.000, test acc 1.000
epoch 141, loss 0.0058, train acc 1.000, test acc 1.000
epoch 142, loss 0.0056, train acc 1.000, test acc 1.000
epoch 143, loss 0.0058, train acc 1.000, test acc 1.000
epoch 144, loss 0.0054, train acc 1.000, test acc 1.000
epoch 145, loss 0.0055, train acc 1.000, test acc 1.000
epoch 146, loss 0.0055, train acc 1.000, test acc 1.000
epoch 147, loss 0.0055, train acc 1.000, test acc 1.000
epoch 148, loss 0.0053, train acc 1.000, test acc 1.000
epoch 149, loss 0.0053, train acc 1.000, test acc 1.000
epoch 150, loss 0.0052, train acc 1.000, test acc 1.000
epoch 151, loss 0.0052, train acc 1.000, test acc 1.000
epoch 152, loss 0.0056, train acc 1.000, test acc 1.000
epoch 153, loss 0.0052, train acc 1.000, test acc 1.000
epoch 154, loss 0.0051, train acc 1.000, test acc 1.000
epoch 155, loss 0.0052, train acc 1.000, test acc 1.000
epoch 156, loss 0.0052, train acc 1.000, test acc 1.000
epoch 157, loss 0.0050, train acc 1.000, test acc 1.000
epoch 158, loss 0.0050, train acc 1.000, test acc 1.000
epoch 159, loss 0.0051, train acc 1.000, test acc 1.000
epoch 160, loss 0.0050, train acc 1.000, test acc 1.000
epoch 161, loss 0.0052, train acc 1.000, test acc 1.000
epoch 162, loss 0.0049, train acc 1.000, test acc 1.000
epoch 163, loss 0.0051, train acc 1.000, test acc 1.000
epoch 164, loss 0.0049, train acc 1.000, test acc 1.000
epoch 165, loss 0.0050, train acc 1.000, test acc 1.000
epoch 166, loss 0.0049, train acc 1.000, test acc 1.000
epoch 167, loss 0.0048, train acc 1.000, test acc 1.000
epoch 168, loss 0.0050, train acc 1.000, test acc 1.000
epoch 169, loss 0.0050, train acc 1.000, test acc 1.000
epoch 170, loss 0.0048, train acc 1.000, test acc 1.000
epoch 171, loss 0.0050, train acc 1.000, test acc 1.000
epoch 172, loss 0.0048, train acc 1.000, test acc 1.000
epoch 173, loss 0.0047, train acc 1.000, test acc 1.000
epoch 174, loss 0.0047, train acc 1.000, test acc 1.000
epoch 175, loss 0.0049, train acc 1.000, test acc 1.000
epoch 176, loss 0.0049, train acc 1.000, test acc 1.000
epoch 177, loss 0.0048, train acc 1.000, test acc 1.000
epoch 178, loss 0.0047, train acc 1.000, test acc 1.000
epoch 179, loss 0.0047, train acc 1.000, test acc 1.000
epoch 180, loss 0.0048, train acc 1.000, test acc 1.000
epoch 181, loss 0.0047, train acc 1.000, test acc 1.000
epoch 182, loss 0.0047, train acc 1.000, test acc 1.000
epoch 183, loss 0.0043, train acc 1.000, test acc 1.000
epoch 184, loss 0.0046, train acc 1.000, test acc 1.000
epoch 185, loss 0.0045, train acc 1.000, test acc 1.000
epoch 186, loss 0.0046, train acc 1.000, test acc 1.000
epoch 187, loss 0.0046, train acc 1.000, test acc 1.000
epoch 188, loss 0.0045, train acc 1.000, test acc 1.000
epoch 189, loss 0.0046, train acc 1.000, test acc 1.000
epoch 190, loss 0.0043, train acc 1.000, test acc 1.000
epoch 191, loss 0.0046, train acc 1.000, test acc 1.000
epoch 192, loss 0.0045, train acc 1.000, test acc 1.000
epoch 193, loss 0.0044, train acc 1.000, test acc 1.000
epoch 194, loss 0.0046, train acc 1.000, test acc 1.000
epoch 195, loss 0.0042, train acc 1.000, test acc 1.000
epoch 196, loss 0.0044, train acc 1.000, test acc 1.000
epoch 197, loss 0.0044, train acc 1.000, test acc 1.000
epoch 198, loss 0.0043, train acc 1.000, test acc 1.000
epoch 199, loss 0.0042, train acc 1.000, test acc 1.000
epoch 200, loss 0.0042, train acc 1.000, test acc 1.000
epoch 201, loss 0.0041, train acc 1.000, test acc 1.000
epoch 202, loss 0.0046, train acc 1.000, test acc 1.000
epoch 203, loss 0.0044, train acc 1.000, test acc 1.000
epoch 204, loss 0.0044, train acc 1.000, test acc 1.000
epoch 205, loss 0.0044, train acc 1.000, test acc 1.000
epoch 206, loss 0.0043, train acc 1.000, test acc 1.000
epoch 207, loss 0.0043, train acc 1.000, test acc 1.000
epoch 208, loss 0.0043, train acc 1.000, test acc 1.000
epoch 209, loss 0.0044, train acc 1.000, test acc 1.000
epoch 210, loss 0.0042, train acc 1.000, test acc 1.000
epoch 211, loss 0.0043, train acc 1.000, test acc 1.000
epoch 212, loss 0.0041, train acc 1.000, test acc 1.000
epoch 213, loss 0.0042, train acc 1.000, test acc 1.000
epoch 214, loss 0.0042, train acc 1.000, test acc 1.000
epoch 215, loss 0.0040, train acc 1.000, test acc 1.000
epoch 216, loss 0.0041, train acc 1.000, test acc 1.000
epoch 217, loss 0.0043, train acc 1.000, test acc 1.000
epoch 218, loss 0.0041, train acc 1.000, test acc 1.000
epoch 219, loss 0.0040, train acc 1.000, test acc 1.000
epoch 220, loss 0.0041, train acc 1.000, test acc 1.000
epoch 221, loss 0.0041, train acc 1.000, test acc 1.000
epoch 222, loss 0.0039, train acc 1.000, test acc 1.000
epoch 223, loss 0.0041, train acc 1.000, test acc 1.000
epoch 224, loss 0.0040, train acc 1.000, test acc 1.000
epoch 225, loss 0.0039, train acc 1.000, test acc 1.000
epoch 226, loss 0.0040, train acc 1.000, test acc 1.000
epoch 227, loss 0.0039, train acc 1.000, test acc 1.000
epoch 228, loss 0.0040, train acc 1.000, test acc 1.000
epoch 229, loss 0.0037, train acc 1.000, test acc 1.000
epoch 230, loss 0.0041, train acc 1.000, test acc 1.000
epoch 231, loss 0.0039, train acc 1.000, test acc 1.000
epoch 232, loss 0.0039, train acc 1.000, test acc 1.000
epoch 233, loss 0.0038, train acc 1.000, test acc 1.000
epoch 234, loss 0.0041, train acc 1.000, test acc 1.000
epoch 235, loss 0.0039, train acc 1.000, test acc 1.000
epoch 236, loss 0.0040, train acc 1.000, test acc 1.000
epoch 237, loss 0.0040, train acc 1.000, test acc 1.000
epoch 238, loss 0.0040, train acc 1.000, test acc 1.000
epoch 239, loss 0.0038, train acc 1.000, test acc 1.000
epoch 240, loss 0.0038, train acc 1.000, test acc 1.000
epoch 241, loss 0.0041, train acc 1.000, test acc 1.000
epoch 242, loss 0.0037, train acc 1.000, test acc 1.000
epoch 243, loss 0.0038, train acc 1.000, test acc 1.000
epoch 244, loss 0.0037, train acc 1.000, test acc 1.000
epoch 245, loss 0.0036, train acc 1.000, test acc 1.000
epoch 246, loss 0.0039, train acc 1.000, test acc 1.000
epoch 247, loss 0.0039, train acc 1.000, test acc 1.000
epoch 248, loss 0.0038, train acc 1.000, test acc 1.000
epoch 249, loss 0.0036, train acc 1.000, test acc 1.000
epoch 250, loss 0.0040, train acc 1.000, test acc 1.000
epoch 251, loss 0.0038, train acc 1.000, test acc 1.000
epoch 252, loss 0.0036, train acc 1.000, test acc 1.000
epoch 253, loss 0.0035, train acc 1.000, test acc 1.000
epoch 254, loss 0.0036, train acc 1.000, test acc 1.000
epoch 255, loss 0.0038, train acc 1.000, test acc 1.000
epoch 256, loss 0.0038, train acc 1.000, test acc 1.000
epoch 257, loss 0.0037, train acc 1.000, test acc 1.000
epoch 258, loss 0.0036, train acc 1.000, test acc 1.000
epoch 259, loss 0.0036, train acc 1.000, test acc 1.000
epoch 260, loss 0.0035, train acc 1.000, test acc 1.000
epoch 261, loss 0.0039, train acc 1.000, test acc 1.000
epoch 262, loss 0.0035, train acc 1.000, test acc 1.000
epoch 263, loss 0.0033, train acc 1.000, test acc 1.000
epoch 264, loss 0.0036, train acc 1.000, test acc 1.000
epoch 265, loss 0.0035, train acc 1.000, test acc 1.000
epoch 266, loss 0.0035, train acc 1.000, test acc 1.000
epoch 267, loss 0.0035, train acc 1.000, test acc 1.000
epoch 268, loss 0.0036, train acc 1.000, test acc 1.000
epoch 269, loss 0.0036, train acc 1.000, test acc 1.000
epoch 270, loss 0.0033, train acc 1.000, test acc 1.000
epoch 271, loss 0.0037, train acc 1.000, test acc 1.000
epoch 272, loss 0.0035, train acc 1.000, test acc 1.000
epoch 273, loss 0.0032, train acc 1.000, test acc 1.000
epoch 274, loss 0.0037, train acc 1.000, test acc 1.000
epoch 275, loss 0.0034, train acc 1.000, test acc 1.000
epoch 276, loss 0.0034, train acc 1.000, test acc 1.000
epoch 277, loss 0.0036, train acc 1.000, test acc 1.000
epoch 278, loss 0.0036, train acc 1.000, test acc 1.000
epoch 279, loss 0.0033, train acc 1.000, test acc 1.000
epoch 280, loss 0.0035, train acc 1.000, test acc 1.000
epoch 281, loss 0.0035, train acc 1.000, test acc 1.000
epoch 282, loss 0.0035, train acc 1.000, test acc 1.000
epoch 283, loss 0.0033, train acc 1.000, test acc 1.000
epoch 284, loss 0.0034, train acc 1.000, test acc 1.000
epoch 285, loss 0.0032, train acc 1.000, test acc 1.000
epoch 286, loss 0.0035, train acc 1.000, test acc 1.000
epoch 287, loss 0.0033, train acc 1.000, test acc 1.000
epoch 288, loss 0.0032, train acc 1.000, test acc 1.000
epoch 289, loss 0.0036, train acc 1.000, test acc 1.000
epoch 290, loss 0.0033, train acc 1.000, test acc 1.000
epoch 291, loss 0.0032, train acc 1.000, test acc 1.000
epoch 292, loss 0.0033, train acc 1.000, test acc 1.000
epoch 293, loss 0.0034, train acc 1.000, test acc 1.000
epoch 294, loss 0.0032, train acc 1.000, test acc 1.000
epoch 295, loss 0.0033, train acc 1.000, test acc 1.000
epoch 296, loss 0.0034, train acc 1.000, test acc 1.000
epoch 297, loss 0.0033, train acc 1.000, test acc 1.000
epoch 298, loss 0.0034, train acc 1.000, test acc 1.000
epoch 299, loss 0.0032, train acc 1.000, test acc 1.000
epoch 300, loss 0.0032, train acc 1.000, test acc 1.000

png

plot_loss_curve([train_acc,"train_acc"],[test_acc,"test_acc"],ylabel = "acc")

png

三、动手实现 softmax 回归

  1. 要求动手从0实现 softmax 回归（只借助Tensor和Numpy相关的库）在Fashion-MNIST数据集上进行训练和测试，并从loss、训练集以及测试集上的准确率等多个角度对结果进行分析（要求从零实现交叉熵损失函数）
import torch
import numpy as np
import matplotlib.pyplot as plt
import torch.utils.data as Data
from torch.nn import init
from torch import nn
from torchvision import transforms as transforms
import torchvision
from torch.utils.data import DataLoader

batch_size = 256
mnist_train = torchvision.datasets.FashionMNIST(root='../Datasets/FashionMNIST', train=True, download=True, transform=transforms.ToTensor())
mnist_test = torchvision.datasets.FashionMNIST(root='../Datasets/FashionMNIST', train=False, download=True, transform=transforms.ToTensor())
train_iter = torch.utils.data.DataLoader(mnist_train, batch_size=batch_size, shuffle=True, num_workers=0)
test_iter = torch.utils.data.DataLoader(mnist_test, batch_size=batch_size, shuffle=False, num_workers=0)


def cross_entropy(y_true, y_pred):
    return - torch.log(y_pred.gather(1,y_true.view(-1,1)))

def sgd(params, lr, batch_size):
    for param in params:
        param.data -= lr * param.grad / batch_size

def initialize(m, n):
    num_inputs = m
    num_outputs = n
    W = torch.tensor(np.random.normal(0,0.01,(num_inputs,num_outputs)),dtype=torch.float)
    b = torch.zeros(num_outputs,dtype=torch.float)
    W.requires_grad_(requires_grad=True)
    b.requires_grad_(requires_grad=True)

    return W, b

def softmax(X):
    X_exp = X.exp()
    partition = X_exp.sum(dim=1, keepdim=True)
    return X_exp / partition

def linear_combination(X, W, b, m):
    Z = torch.mm(X.view((-1,m)), W) + b
    return Z

def forward(X, W, b, m):
    Z = linear_combination(X, W, b, m)
    y_pred = softmax(Z)
    return y_pred

def evaluate_accuracy(data_iter, m, W, b):
    acc_sum,n,test_l_sum = 0.0,0 ,0
    for testX, testY in data_iter:
        acc_sum += (forward(testX, W, b, m).argmax(dim = 1) == testY).float().sum().item()
        l = cross_entropy(testY,forward(testX, W, b, m)).sum()
        test_l_sum += l.item()
        n += testY.shape[0]
    return acc_sum/n,test_l_sum/n


def train(test_acc, train_acc, train_loss, test_loss, W, b, epochs, batch_size, learning_rate ,data_iter, m):
    for i in range(epochs):
        train_l_sum, train_acc_sum, n = 0.0,0.0,0
        for trainX, trainY in train_iter:
            train_y_pred = forward(trainX, W, b, m)
            training_loss = cross_entropy(trainY, train_y_pred).sum()
            training_loss.backward()
            update([W,b],batch_size,learning_rate)
            W.grad.data.zero_()
            b.grad.data.zero_()
            train_l_sum += training_loss.item()
            train_acc_sum += (train_y_pred.argmax(dim=1)==trainY).sum().item()
            n += trainY.shape[0]
        test_a,test_l = evaluate_accuracy(test_iter, m, W, b)
        test_acc.append(test_a)
        test_loss.append(test_l)
        train_acc.append(train_acc_sum/n)
        train_loss.append(train_l_sum/n)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f'
            % (i + 1, train_loss[i], train_acc[i], test_acc[i]))


lr = 0.0005
num_epochs = 50
batch_size = 256
test_acc,train_acc= [],[]
train_loss,test_loss =[],[]
W, b = initialize(784, 10)

train(test_acc,train_acc,train_loss,test_loss,W, b,num_epochs,batch_size,lr,data_iter, 784)

plot_loss_curve([train_loss,"train_loss"])

epoch 1, loss 2.1734, train acc 0.317, test acc 0.495
epoch 2, loss 1.9692, train acc 0.585, test acc 0.625
epoch 3, loss 1.8132, train acc 0.644, test acc 0.642
epoch 4, loss 1.6877, train acc 0.655, test acc 0.648
epoch 5, loss 1.5853, train acc 0.659, test acc 0.653
epoch 6, loss 1.5006, train acc 0.662, test acc 0.655
epoch 7, loss 1.4297, train acc 0.663, test acc 0.656
epoch 8, loss 1.3697, train acc 0.665, test acc 0.657
epoch 9, loss 1.3183, train acc 0.666, test acc 0.659
epoch 10, loss 1.2738, train acc 0.668, test acc 0.660
epoch 11, loss 1.2349, train acc 0.669, test acc 0.662
epoch 12, loss 1.2006, train acc 0.671, test acc 0.664
epoch 13, loss 1.1702, train acc 0.673, test acc 0.666
epoch 14, loss 1.1429, train acc 0.676, test acc 0.668
epoch 15, loss 1.1184, train acc 0.678, test acc 0.670
epoch 16, loss 1.0961, train acc 0.681, test acc 0.673
epoch 17, loss 1.0759, train acc 0.684, test acc 0.674
epoch 18, loss 1.0573, train acc 0.686, test acc 0.676
epoch 19, loss 1.0403, train acc 0.688, test acc 0.678
epoch 20, loss 1.0246, train acc 0.691, test acc 0.681
epoch 21, loss 1.0100, train acc 0.693, test acc 0.685
epoch 22, loss 0.9965, train acc 0.696, test acc 0.687
epoch 23, loss 0.9838, train acc 0.699, test acc 0.690
epoch 24, loss 0.9720, train acc 0.703, test acc 0.691
epoch 25, loss 0.9609, train acc 0.705, test acc 0.694
epoch 26, loss 0.9505, train acc 0.708, test acc 0.697
epoch 27, loss 0.9406, train acc 0.710, test acc 0.699
epoch 28, loss 0.9313, train acc 0.713, test acc 0.702
epoch 29, loss 0.9225, train acc 0.716, test acc 0.703
epoch 30, loss 0.9141, train acc 0.718, test acc 0.706
epoch 31, loss 0.9062, train acc 0.721, test acc 0.708
epoch 32, loss 0.8986, train acc 0.723, test acc 0.711
epoch 33, loss 0.8914, train acc 0.725, test acc 0.712
epoch 34, loss 0.8845, train acc 0.727, test acc 0.714
epoch 35, loss 0.8779, train acc 0.729, test acc 0.715
epoch 36, loss 0.8715, train acc 0.731, test acc 0.717
epoch 37, loss 0.8654, train acc 0.733, test acc 0.719
epoch 38, loss 0.8596, train acc 0.735, test acc 0.720
epoch 39, loss 0.8540, train acc 0.736, test acc 0.722
epoch 40, loss 0.8486, train acc 0.738, test acc 0.724
epoch 41, loss 0.8434, train acc 0.740, test acc 0.726
epoch 42, loss 0.8384, train acc 0.741, test acc 0.728
epoch 43, loss 0.8335, train acc 0.743, test acc 0.729
epoch 44, loss 0.8288, train acc 0.744, test acc 0.730
epoch 45, loss 0.8243, train acc 0.745, test acc 0.731
epoch 46, loss 0.8199, train acc 0.747, test acc 0.732
epoch 47, loss 0.8156, train acc 0.748, test acc 0.733
epoch 48, loss 0.8115, train acc 0.749, test acc 0.735
epoch 49, loss 0.8075, train acc 0.751, test acc 0.736
epoch 50, loss 0.8036, train acc 0.751, test acc 0.737

png

plot_loss_curve([train_acc,"train_acc"],[test_acc,"test_acc"],ylabel = "acc")

png

  1. 利用torch.nn实现 softmax 回归在Fashion-MNIST数据集上进行训练和测试，并从loss，训练集以及测试集上的准确率等多个角度对结果进行分析
import torch
import numpy as np
import matplotlib.pyplot as plt
import torch.utils.data as Data
from torch.nn import init
from torch import nn
from torchvision import transforms as transforms
import torchvision
from torch.utils.data import DataLoader


forward = torch.nn.Sequential(nn.Flatten(), nn.Linear(784,10))
def init_weights(m):
    if type(m) == nn.Linear:
        nn.init.normal_(m.weight,std = 0.01)
forward.apply(init_weights)
loss = nn.CrossEntropyLoss()
optimizer = torch.optim.SGD(forward.parameters(),lr = 0.1)

def evaluate_accuracy(data_iter):
    acc_sum,n,test_l_sum = 0.0,0 ,0
    for testX, testY in data_iter:
        acc_sum += (forward(testX).argmax(dim = 1) == testY).float().sum().item()
        l = loss(forward(testX),testY).sum()
        test_l_sum += l.item()
        n += testY.shape[0]
    return acc_sum/n,test_l_sum/n

def train(test_acc, train_acc, train_loss, test_loss, epochs):
    for i in range(epochs):
        train_l_sum, train_acc_sum, n = 0.0,0.0,0
        for trainX, trainY in train_iter:
            train_y_pred = forward(trainX)
            training_loss = loss(train_y_pred, trainY).sum()
            optimizer.zero_grad()
            training_loss.backward()
            optimizer.step()
            train_l_sum += training_loss.item()
            train_acc_sum += (train_y_pred.argmax(dim=1)==trainY).sum().item()
            n += trainY.shape[0]
        test_a,test_l = evaluate_accuracy(test_iter)
        test_acc.append(test_a)
        test_loss.append(test_l)
        train_acc.append(train_acc_sum/n)
        train_loss.append(train_l_sum/n)
        print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f'
            % (i + 1, train_loss[i], train_acc[i], test_acc[i]))


lr = 0.0005
num_epochs = 50
batch_size = 256
test_acc,train_acc= [],[]
train_loss,test_loss =[],[]
W, b = initialize(784, 10)

train(test_acc,train_acc,train_loss,test_loss,num_epochs)

plot_loss_curve([train_loss,"train_loss"])

epoch 1, loss 0.0031, train acc 0.750, test acc 0.742
epoch 2, loss 0.0022, train acc 0.813, test acc 0.811
epoch 3, loss 0.0021, train acc 0.826, test acc 0.809
epoch 4, loss 0.0020, train acc 0.833, test acc 0.819
epoch 5, loss 0.0019, train acc 0.836, test acc 0.819
epoch 6, loss 0.0019, train acc 0.840, test acc 0.826
epoch 7, loss 0.0018, train acc 0.843, test acc 0.823
epoch 8, loss 0.0018, train acc 0.845, test acc 0.832
epoch 9, loss 0.0018, train acc 0.847, test acc 0.834
epoch 10, loss 0.0017, train acc 0.849, test acc 0.829
epoch 11, loss 0.0017, train acc 0.849, test acc 0.830
epoch 12, loss 0.0017, train acc 0.850, test acc 0.817
epoch 13, loss 0.0017, train acc 0.852, test acc 0.837
epoch 14, loss 0.0017, train acc 0.853, test acc 0.830
epoch 15, loss 0.0017, train acc 0.852, test acc 0.832
epoch 16, loss 0.0017, train acc 0.853, test acc 0.834
epoch 17, loss 0.0017, train acc 0.854, test acc 0.835
epoch 18, loss 0.0017, train acc 0.855, test acc 0.838
epoch 19, loss 0.0017, train acc 0.855, test acc 0.839
epoch 20, loss 0.0016, train acc 0.857, test acc 0.835
epoch 21, loss 0.0016, train acc 0.857, test acc 0.840
epoch 22, loss 0.0016, train acc 0.858, test acc 0.839
epoch 23, loss 0.0016, train acc 0.858, test acc 0.840
epoch 24, loss 0.0016, train acc 0.859, test acc 0.837
epoch 25, loss 0.0016, train acc 0.859, test acc 0.839
epoch 26, loss 0.0016, train acc 0.859, test acc 0.843
epoch 27, loss 0.0016, train acc 0.859, test acc 0.840
epoch 28, loss 0.0016, train acc 0.860, test acc 0.840
epoch 29, loss 0.0016, train acc 0.859, test acc 0.839
epoch 30, loss 0.0016, train acc 0.861, test acc 0.835
epoch 31, loss 0.0016, train acc 0.861, test acc 0.835
epoch 32, loss 0.0016, train acc 0.861, test acc 0.839
epoch 33, loss 0.0016, train acc 0.861, test acc 0.840
epoch 34, loss 0.0016, train acc 0.863, test acc 0.833
epoch 35, loss 0.0016, train acc 0.861, test acc 0.843
epoch 36, loss 0.0016, train acc 0.861, test acc 0.842
epoch 37, loss 0.0016, train acc 0.863, test acc 0.839
epoch 38, loss 0.0016, train acc 0.862, test acc 0.840
epoch 39, loss 0.0016, train acc 0.863, test acc 0.842
epoch 40, loss 0.0016, train acc 0.863, test acc 0.838
epoch 41, loss 0.0016, train acc 0.862, test acc 0.841
epoch 42, loss 0.0016, train acc 0.863, test acc 0.845
epoch 43, loss 0.0016, train acc 0.863, test acc 0.837
epoch 44, loss 0.0016, train acc 0.864, test acc 0.835
epoch 45, loss 0.0016, train acc 0.864, test acc 0.844
epoch 46, loss 0.0016, train acc 0.864, test acc 0.837
epoch 47, loss 0.0016, train acc 0.864, test acc 0.841
epoch 48, loss 0.0015, train acc 0.865, test acc 0.843
epoch 49, loss 0.0015, train acc 0.864, test acc 0.846
epoch 50, loss 0.0015, train acc 0.864, test acc 0.845

png

plot_loss_curve([train_acc,"train_acc"],[test_acc,"test_acc"],ylabel = "acc")

png
